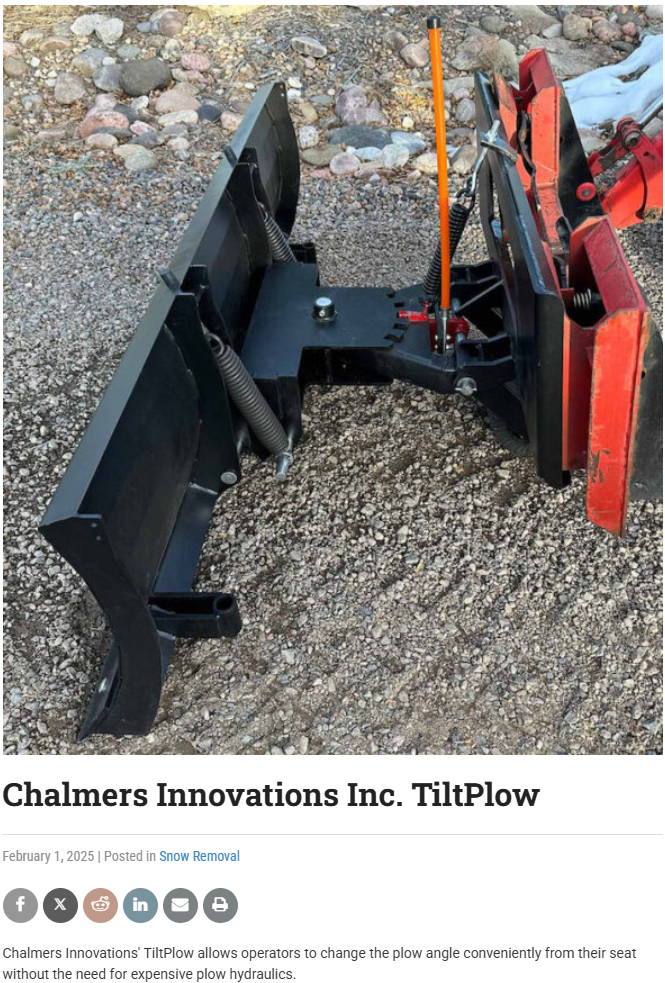

TiltPlow


patent pending
United States and Canada

Contact Steven Chalmers
for Licensing

303-981-9879
Steven@ChalmersInnovations.com

No gouging

The TiltPlow is operated with the FEL in float mode.  That, combined with the TiltPlow tailwheel, and the articulated connection, allows the TiltPlow to never gouge the plowed surface.

How to use the TiltPlow

1.

Free the rotation

2.

Affect the blade angle

3.

Lock the rotation

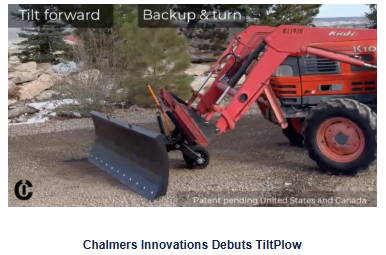

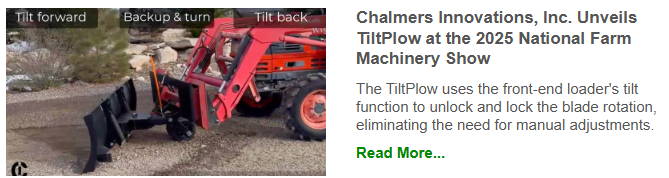

Tilt the FEL forward to free the blade rotation.

With the blade on the ground, back up while turning left or right.


Or, moving forward, contact some snow to affect the blade angle.

Tilt the FEL back to lock the blade rotation.

Operation

• The operator lowers the FEL to place the TiltPlow on the ground. While the TiltPlow is off the ground, the FEL tilt function may be used to set the TiltPlow approximately parallel to the ground.

• The operator places the FEL in float mode.

• The TiltPlow angle is adjusted in 3 steps:

1. The operator tilts the FEL forward to free the plow blade rotation.

2. The operator changes the plow blade angle by one of two mechanisms:

 Drive the plow blade forward or backward while steering the tractor left or right.

 Drive either end of the plow blade into a pile of snow.

3. The operator tilts the FEL backward to lock the plow blade rotation.


Note that if the locking teeth of the mechanism do not initially align with the lock bar, the plow blade will be free to rotate and will do so until the locking teeth and the lock bar do align, at which time the spring-loaded plate of locking teeth will move upward to engage the lock bar.


Benefits

Uses your existing FEL tilt to change the blade angle

No need to plumb hydraulics and add an extra valve.

No need to get off the tractor to pull the pin and manually reposition the blade.

Use with a Quick Attach plate...

As shown, the Tilt Plow is configured to be used with a Quick Attach system.

Use with a bucket...

Bucket clamps, not shown, can also be used to connect to the Tilt Plow.

Switching from straight-ahead plowing to right-hand plowing

Switching from slight right-hand plowing to full right-hand plowing without stopping

Switching from straight-ahead plowing to right-hand plowing and then left

Plowing on gravel, switching from left to right

Plowing on gravel, several transitions.

Benefits

• No need for hydraulics plumbed to the front of the tractor to adjust the angle of the plow blade.

• No need to dismount the tractor to adjust the angle of the plow blade.

• The TiltPlow follows the contours of the road surface better that a conventionally mounted plow since it is its own carriage pivoting on the connection to the FEL.

• The plow blade trip functionality is not impacted by the design of the TiltPlow.

• The angle of the plow blade is maintained when the FEL is raised.

• The actuation of the rotation lock mechanism requires only a small rotation of the FEL tilt.

• A large amount of rotation of the FEL tilt is accommodated by the design which eases the operator’s efforts.

• The operator is informed that the plow blade rotation is unlocked by a mechanical indicator on the TiltPlow.

• Design can easily accommodate connecting to a bucket of an FEL.


Tilt Plow on a Bucket

This bucket mount prototype works perfectly!


Very little rotation of the bucket is needed to actuate the unlocking of the plow rotation.

The bucket is rotated back to secure the rotation lock of the plow.
